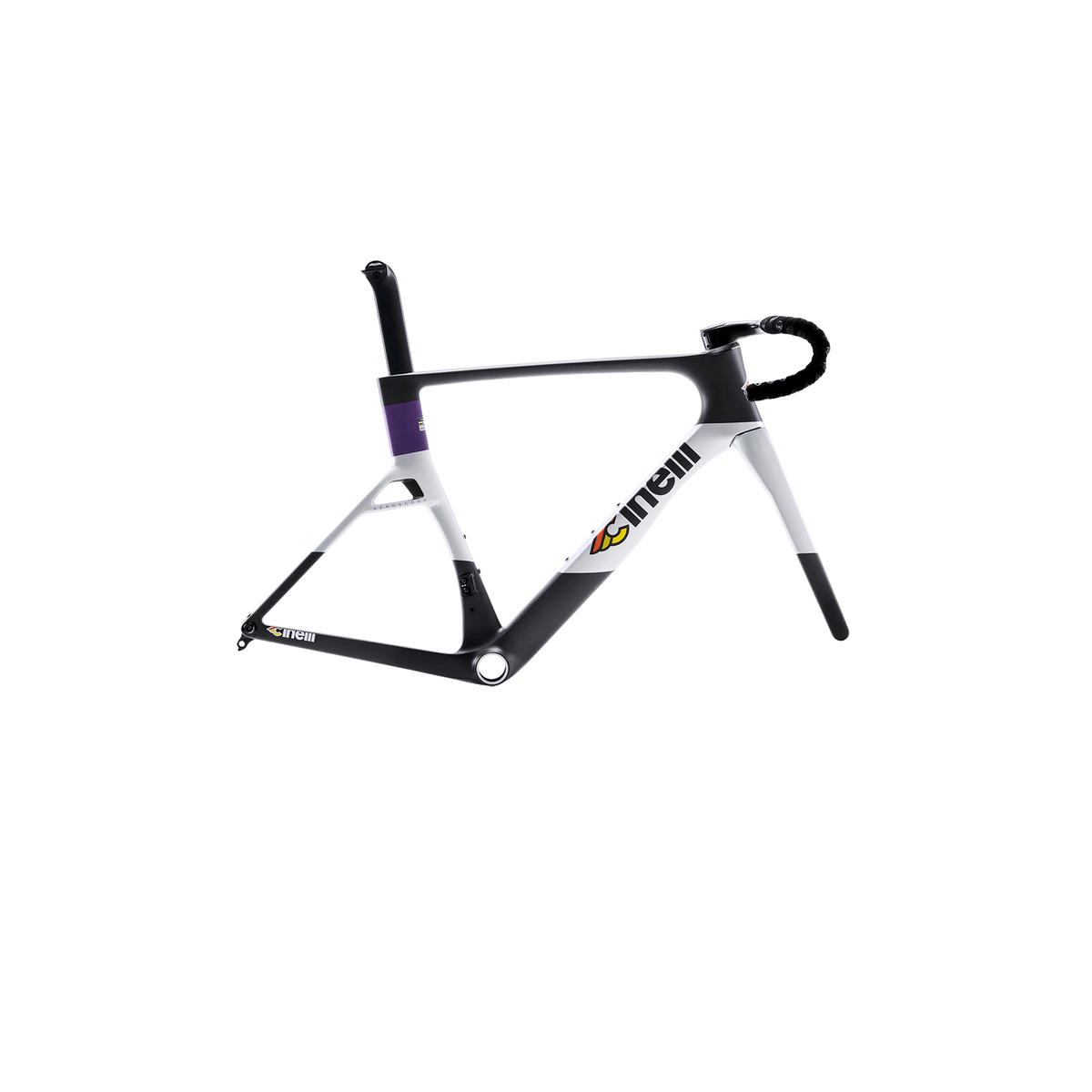

Cinelli Aeroscoop - Frameset Purple Fiber

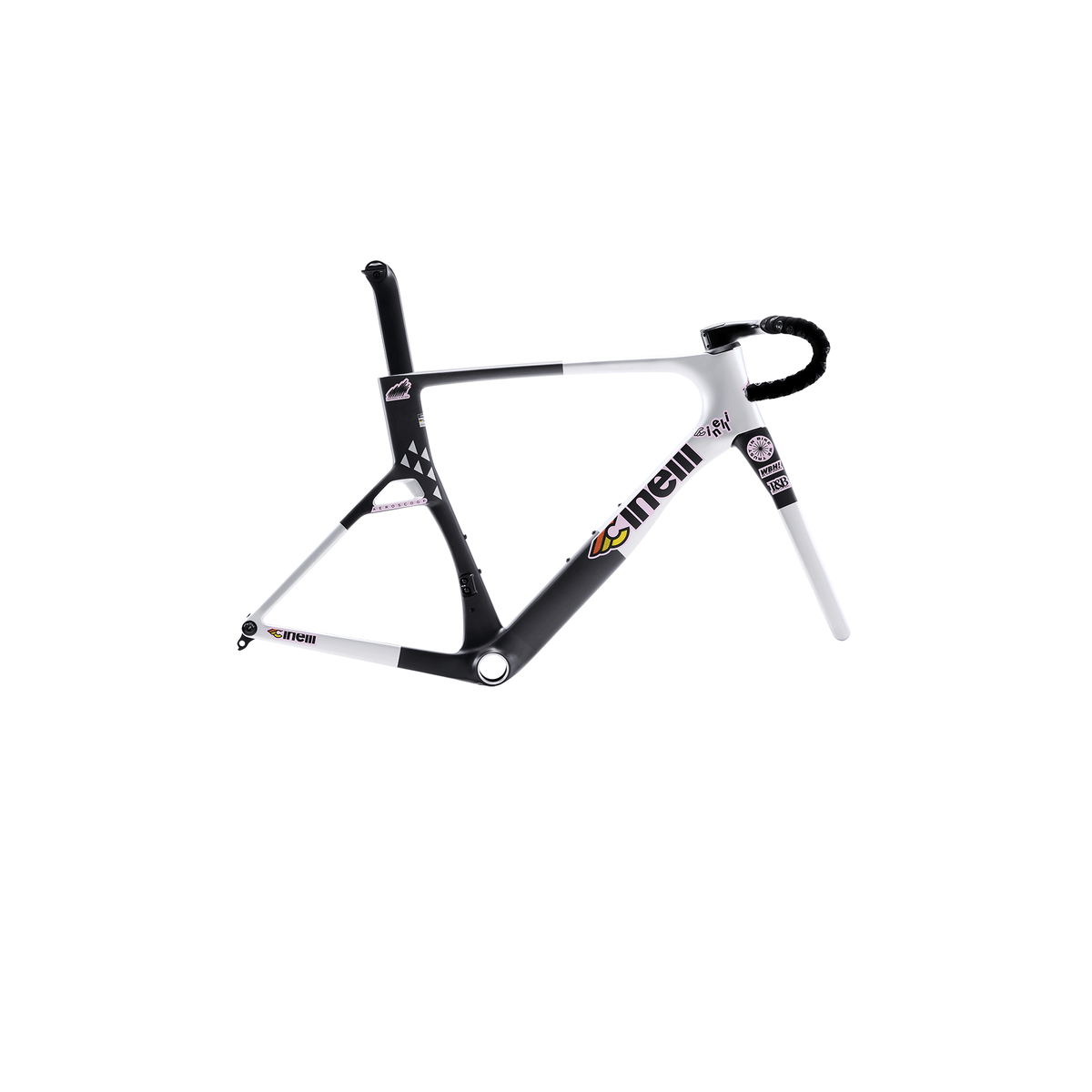

Cinelli Aeroscoop - Frameset Team Edition 26

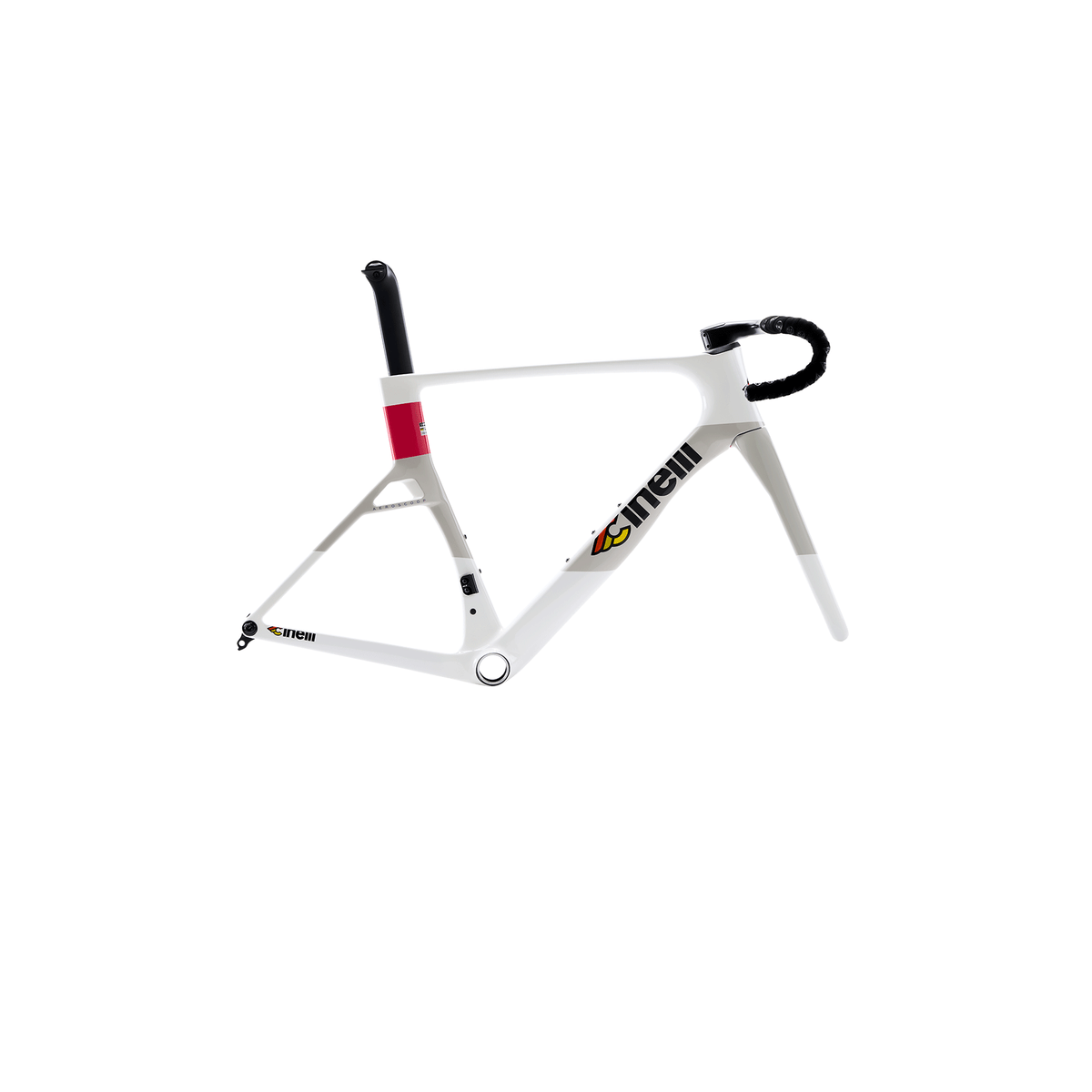

Cinelli Aeroscoop - Frameset Coral White

Cinelli Aeroscoop - Frameset

Supplier: Cinelli Bikes

€4.513,95 EUR

Including VAT. Shipping is calculated at checkout.

In stock

Color: Purple Fiber

Coral White Purple Fiber Blue Beat Team Edition 26

Size: L/54

XS/46 S/49 M/52 L/54 XL/56

The Cinelli Aeroscoop Frame Kit is the foundation for an aerodynamic road bike build with a distinct race geometry. The UCI-approved monocoque carbon frame has shaped tubes, an integrated cockpit and fully internal cable routing. The frameset accommodates tires up to 34 mm measured width and is for riders who want to choose their own drivetrain, wheels and other components.

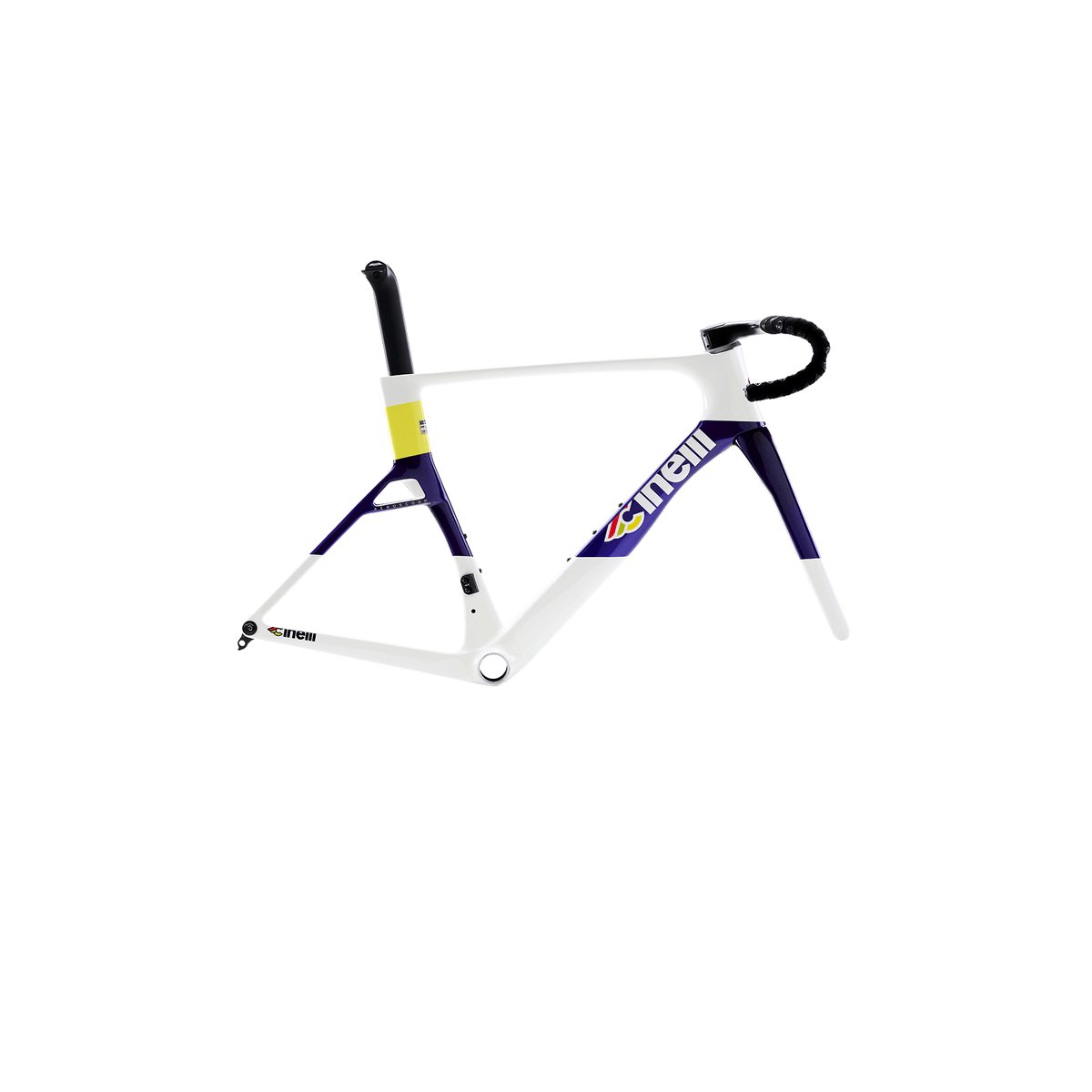

Frame, fork, size-specific integrated handlebar and stem, seatpost, headset, spacers, UDH, thru-axles and other frame parts are included. The frame is built for electronic shifting and flat-mount disc brakes; mechanical groupsets and rim brakes are therefore not intended for this build. T47/86 bottom bracket with ceramic bearings is included. Choose between Blue Beat, Purple Fiber, Coral White and Team Edition 26.

Quick Specs

Frame and fork: UCI-approved monocoque carbon fiber; 950 g frame in size M and 370 g uncut fork
Cable routing: fully internal, electronic groupsets only
Brakes: flat-mount disc brake, rotor up to 160 mm
Bottom bracket: threaded T47/86 with ceramic bearings included
Tire clearance: up to 34 mm measured width
Axles: 12 × 100 mm front and 12 × 142 mm rear
Included: frame, fork, integrated cockpit, seatpost, headset, spacers, UDH, axles and fork expander
Sizes: XS/46, S/49, M/52, L/54, XL/56

600+ Verified Reviews ★ ★ ★ ★ ★ 4.9
Handpicked selection
Questions? Contact us

Orders outside the EU!

If you are ordering from outside the European Union. Please note that your order may be subject to local customs duties and import taxes upon arrival.

Specifications

Cinelli Aeroscoop – Frame Kit
Use: Aerodynamic frameset for a custom road bike build.
Construction: Monocoque carbon fiber, UCI-approved race geometry and aerodynamically shaped tubes.
Frame weight: 950 g in size M, Purple Fiber, painted. Fork weight: 370 g uncut, painted. Manufacturer tolerance ±5%.
Fork: Monocoque carbon fiber, 1 1/8–1 1/2 inches.
Cable routing: Fully internal, electronic groupsets only.
Tire clearance: Up to 34 mm measured tire width.
Brakes: Flat-mount disc brakes, up to 160 mm rotors.
Bottom bracket: Threaded T47/86; ceramic bearings included.
Headset: IS52/28.6 upper and IS52/40 lower, included.
Axles: 12 × 100 mm front thru-axle (M12 × 120) and 12 × 142 mm rear thru-axle (M12 × 175).
Integrated cockpit: XS 90 × 360 mm, S 100 × 380 mm, M 100 × 380 mm, L 110 × 380 mm, XL 120 × 410 mm.
Included: Frame, fork, integrated handlebar, seatpost, hidden seatpost clamp, headset, spacers, UDH, thru-axles and fork expander. Complete bicycle not included.
Sizes: XS/46, S/49, M/52, L/54, XL/56.
Colors: Blue Beat, Purple Fiber, Coral White, Team Edition 26.
